Purpose-Built for Veterinary Surgery

Safer Surgeries.
Better Outcomes
for Your Patients.

The VetSeal Vessel Sealing System gives your veterinary clinic or hospital the precision, speed, and reliability to tackle complex soft tissue procedures — with less bleeding, faster recovery, and greater confidence in every case.

🐾
Designed for Veterinary Use
⚡
400W Digital Output
🔬
Seals Vessels up to 7mm
Request a Demo → View Specs

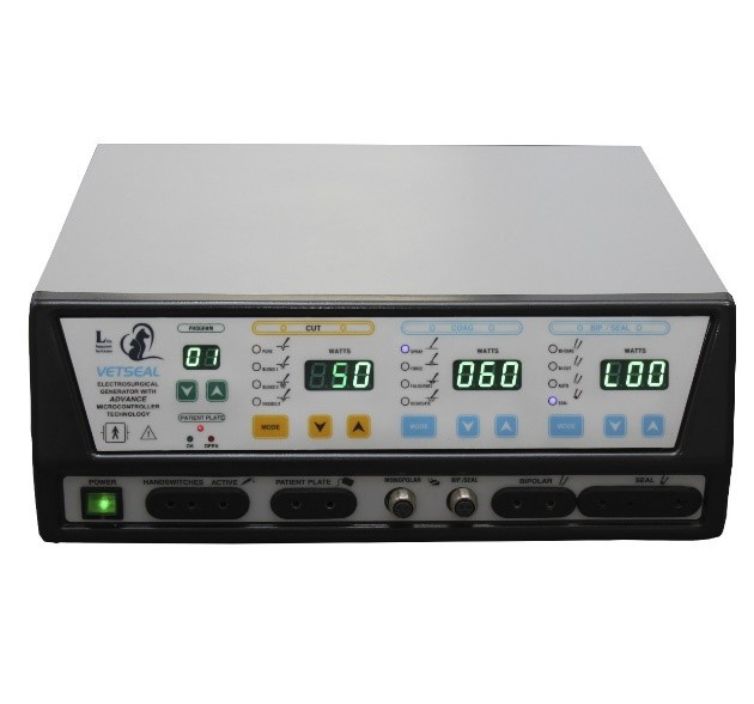

VetSeal Electrosurgical Unit
400WDigital ESU
400W
Peak Power
150W
Vessel Sealer
7mm
Max Vessel
99
Programs
Why Your Clinic Needs VetSeal

The Standard of Care Your Patients Deserve

Whether you're performing routine spays and neuters or complex oncological resections, VetSeal delivers the control and consistency that protects both your patients and your practice.

🩸

Minimise Intraoperative Bleeding

VetSeal creates a permanent, plastic-like seal in vessels and tissue bundles, dramatically reducing intraoperative blood loss. Less haemorrhage means a cleaner surgical field and safer anaesthesia time for your patients.

⏱️

Reduce Time Under Anaesthesia

Faster haemostasis means fewer ligatures, less suturing, and shorter procedure times. Reducing your patients' time under general anaesthesia directly lowers anaesthetic risk — a priority for every veterinary team.

🔄

Faster Patient Recovery

Minimal tissue trauma and precise energy delivery mean less post-operative swelling and pain. Your patients recover more comfortably, and your clients go home reassured — strengthening your clinic's reputation.

🎯

Precision Across All Tissue Types

From delicate feline procedures to large-breed canine surgeries, VetSeal's 99 programmable modes let you calibrate power precisely to the patient and the procedure — every single time.

🔒

Auto-Stop Safety for Peace of Mind

VetSeal's feedback-controlled system automatically stops energy delivery the moment the seal cycle is complete. No guesswork, no over-treatment — just reliable, repeatable results that protect your patients.

💼

A Sound Investment for Your Practice

One system. Twelve cutting and coagulation modes. Vessel sealing up to 7mm. VetSeal replaces the need for multiple individual tools, streamlining your theatre setup and delivering excellent return on investment.

About the Technology

Advanced Vessel Sealing — Engineered for Veterinary Practice

Traditional haemostasis techniques — ligatures, clips, and standard diathermy — have served veterinary surgeons for decades. But they carry limitations: ligatures take time, clips leave foreign material, and standard monopolar diathermy lacks the fine control modern veterinary patients need.

VetSeal takes a fundamentally different approach. Using a unique combination of controlled pressure and precisely tuned bipolar energy, it fuses the collagen and elastin within vessel walls — permanently sealing vessels and tissue bundles up to 7mm in diameter without leaving sutures, clips, or any foreign material behind.

The result is a permanently sealed vessel that does not rely on a proximal thrombus. There is virtually no sticking or charring of tissue, and the risk of delayed bleeding is significantly reduced — a meaningful benefit for post-operative patient safety in both hospital and clinic settings.

"VetSeal's feedback-controlled system automatically discontinues energy delivery when the seal cycle is complete — removing uncertainty from one of the most critical steps in soft tissue surgery."
  • ✓
    Seals vessels and tissue bundles up to 7mm diameter in a single application
  • ✓
    No foreign material left behind — eliminates sutures, clips, and ligatures for sealed vessels
  • ✓
    Permanent seal with no reliance on a proximal thrombus for long-term integrity
  • ✓
    Virtually no tissue charring or sticking — cleaner surgical field throughout the procedure
  • ✓
    Separate foot-switch inputs for Monopolar, Bipolar, and Seal modes — no mid-procedure confusion
  • ✓
    99 user-programmable modes — store and recall your preferred settings for every procedure type

Included in Every Unit

Included Chuck Handle with Monopolar Electrodes (Autoclavable)
Included Bipolar Forcep with Cable (Autoclavable)
Included Monopolar / Bipolar & Seal Double Pedal Foot Switch
Included Disposable Hand Switch Pencil
Included Patient Plate with Code
Surgical Versatility

Three Modes. Every Soft Tissue Procedure Covered.

VetSeal gives your surgical team complete flexibility across cutting, coagulation, and vessel sealing — all from a single, intuitive unit on your theatre trolley.

01
Cut Mode
4 Precision Cutting Sub-Modes

Smooth, controlled tissue incision with four waveform options — from clean pure cutting to blended modes with simultaneous haemostasis. Ideal for routine incisions through to endoscopic sphincterotomy.

  • Pure Cut — High-frequency AC for rapid, clean incisions with minimal haemostasis; ideal for precision tissue cutting
  • Blend 1 — Blended waveform with moderate haemostasis; versatile for most soft tissue dissection
  • Blend 2 — Higher output for vaporisation of fatty or prostatic tissue; faster cut with broader haemostasis
  • Endcut — Automatically controlled cut cycle; reduces complications in endoscopic sphincterotomy procedures
02
Coag Mode
4 Haemostasis Techniques

From pinpoint desiccation in delicate structures to broad spray coagulation for diffuse bleeding, VetSeal's coagulation modes adapt to the demands of every surgical scenario.

  • Spray — Non-contact spark coagulation; excellent for surface bleeding over a wide area without direct electrode contact
  • Force — Superior depth of haemostasis via tissue hyperevaporation; covers all standard coagulation demands
  • Fulgurate — Voltage-elevated spark coagulation without direct tissue contact; effective for irregular bleeding surfaces
  • Desiccate — Direct-contact coagulation for pinpoint precision; minimal peripheral tissue damage
03
Bipolar / Vessel Seal
4 Bipolar Sub-Modes incl. Auto-Seal

The flagship capability of VetSeal — bipolar energy with precise compression to permanently fuse vessels and tissue bundles. The Seal mode can simultaneously seal and cut using specialist sealer instruments.

  • Bi-Coag — Controlled bipolar coagulation with active carbonisation prevention; ideal for sensitive anatomical structures
  • Bi-Cut — Bipolar cutting technology that minimises stray current; safe for precision work in small tissue structures
  • Seal — Fusion of vessels up to 7mm; simultaneous seal-and-cut available with compatible sealer instruments (programs 5 & 6)
  • Auto — Foot-switch triggered; automatically terminates output when tissue coagulation is confirmed
Technical Specifications

Full Performance Data

Detailed output specifications across all modes — everything your biomedical team or practice manager needs to evaluate VetSeal for your facility.

✂

Cut Mode Specifications

ModeMax PowerLoadCrest Factor
Pure Cut400 W300 Ω1.5
Blend 1250 W300 Ω1.5
Blend 2200 W300 Ω1.5
Endcut99%300 Ω1.5
⚡

Coag Mode Specifications

ModeMax PowerLoadCrest Factor
Spray120 W300 Ω7.0
Force120 W300 Ω6.5
Fulgurate150 W300 Ω6.0
Desiccate150 W300 Ω6.0
◈

Bipolar / Seal Mode Specifications

ModeMax PowerLoadCrest Factor
Bi-Coag80 W100 Ω1.5
Bi-Cut80 W100 Ω1.5
Seal150 W100 Ω1.5
Auto100 W100 Ω1.5
🔧

Unit Specifications

Frequency — Monopolar480 kHz
Frequency — Seal Mode1 MHz
Display Type7-Segment LED
Unit Weight7.5 kg
Dimensions (L × W × H)440 × 355 × 155 mm
Input Supply110V / 230V AC (±15%) 50 Hz
Programmable Modes99 user-settable programs
Foot-Switch InputsSeparate Monopolar & Bipolar/Seal
